WCB-M-336
Meet the product

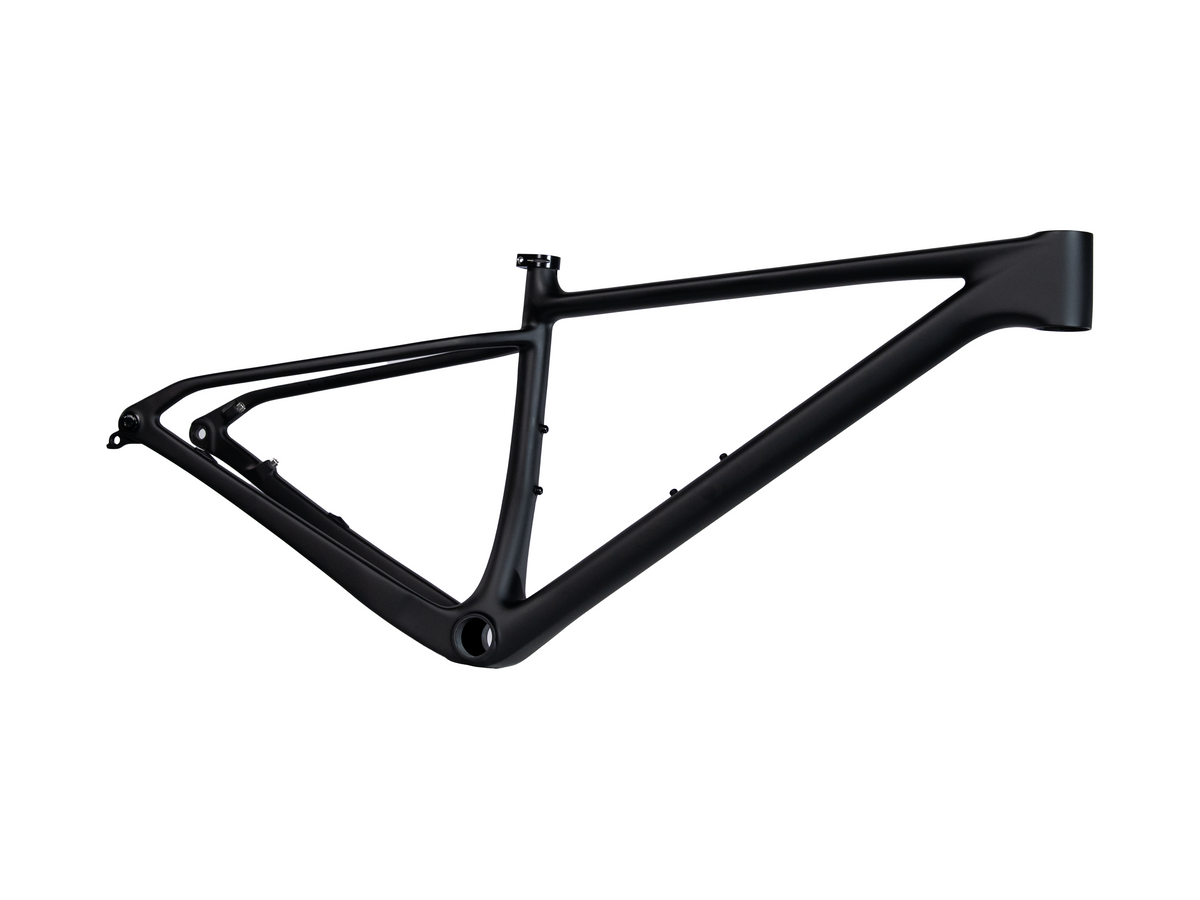

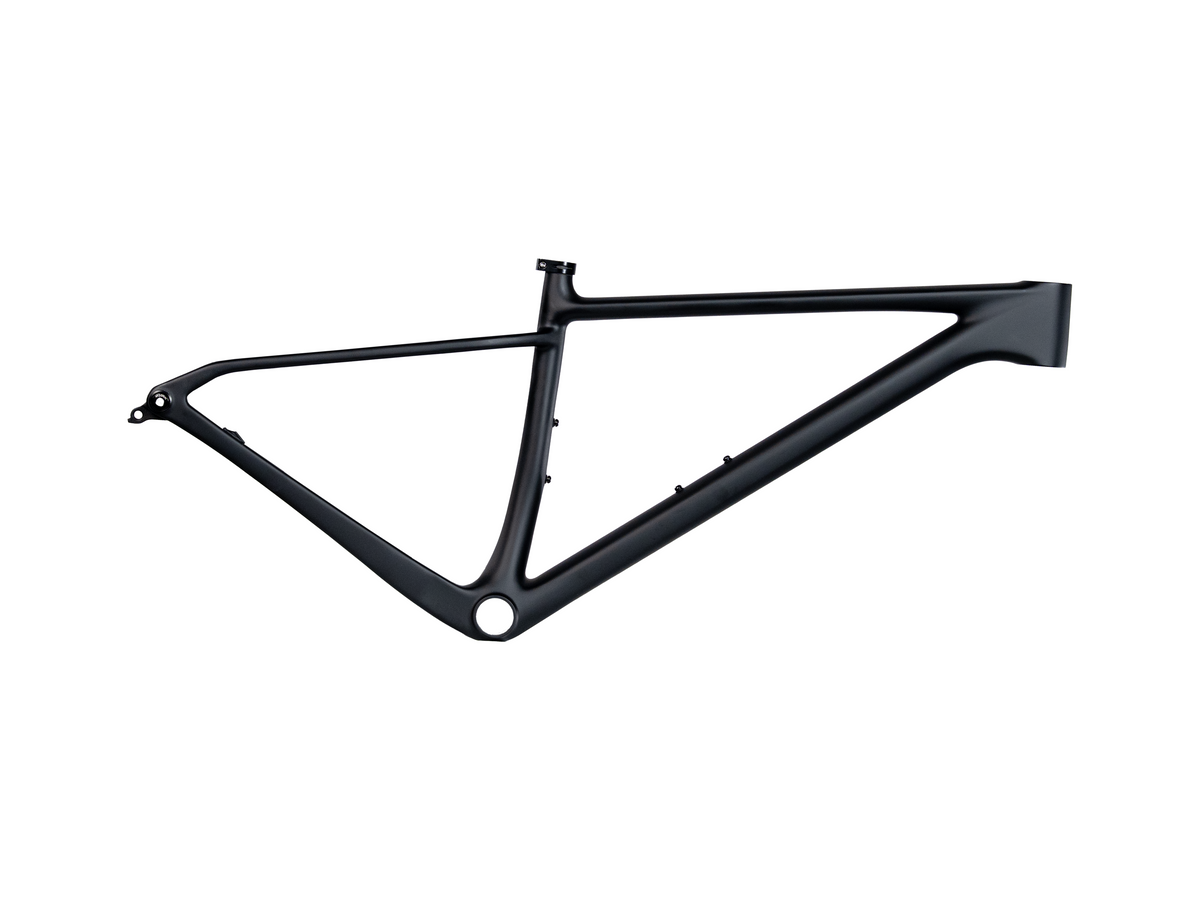

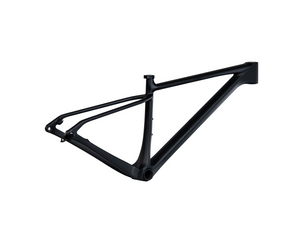

The WCB-M-336 Carbon 29er Hardtail MTB Frame is designed for cross-country mountain biking, combining a carbon/composite frame platform with modern 29-inch wheel geometry. Its hardtail configuration provides a simple and efficient foundation for riders looking for responsive handling and dependable performance across a variety of XC and trail riding conditions.
Available in four frame sizes — S, M, L and XL — the WCB-M-336 offers progressive geometry to accommodate different rider requirements. The frame maintains a 68.5° head tube angle, 74° seat tube angle, 63 mm bottom bracket drop and 435 mm chainstay length across the size range.
Material:Toray prepreg
Headset size: top 1-1/2 down 1-1/2
Seatpost: aero type
BB:BSA/T47(The width of T47 is 68mm)
Size: 49/52/54/56/58
Brake Type: Flat mount disc brake
Maximum tyre size: 700*45Ｃ
Maximum for single speed crankset: 46T;
Maximum for double speed crankset: 50-34T
Rear spacer:142*12mm ( Flat mount disc brake)
Front spacer: monocoque fork 100*12mm ( Flat mount
disc brake ￠140/￠160 interchange)
Cables routing: Fully integrated cable routing
Frame Specifications
| Version | Modd | Size | Weight | Rigidity | ||
|---|---|---|---|---|---|---|
|
Headtube (Light Weight Version 110 ↑) (Normal Weight Version 115 ↑) |
Bottom Bracket(130↑) |
Dropout Bilateral (40 ↑) |
||||
| Normal Weight Version | 340 | S, M, L, XL |
1060G (Including Fittings) |
104 | 153 | 40 |
| Test Items |
Drop Impact Test |
Frost Forward Test |
Back Forward Test |
Disc Brake Fatigue Test |
Verceal Forca Fatigur Test of Frama Sasstulog |
Horicoatal Force Fatigun Test of Frama |
Patlgun Test of Prame Treading Forea |
SeatTube Strength Test |
Headtube Strength Test |
Bortcon Bracket Compressed on Tert |
Vibration Fatigue Load Test |
|---|---|---|---|---|---|---|---|---|---|---|---|
| pass | pass | pass | pass | pass | pass | pass | pass | pass | pass | pass | |
| EN ralced to 230 height |
EN raked to 200 height |
200 height | Standard 241000 Bmex for sach 900N/200N |
EN raindord 122bgf/26000 times |
EN raindard +122.4bgf/-5 1.39gf 60000 times |
122bgf100000 times |
300kgf abore | 300kgf1 | 300kgf1 | EN standard STradbn/L/162 2.50g/14T:10k & 20000 times |

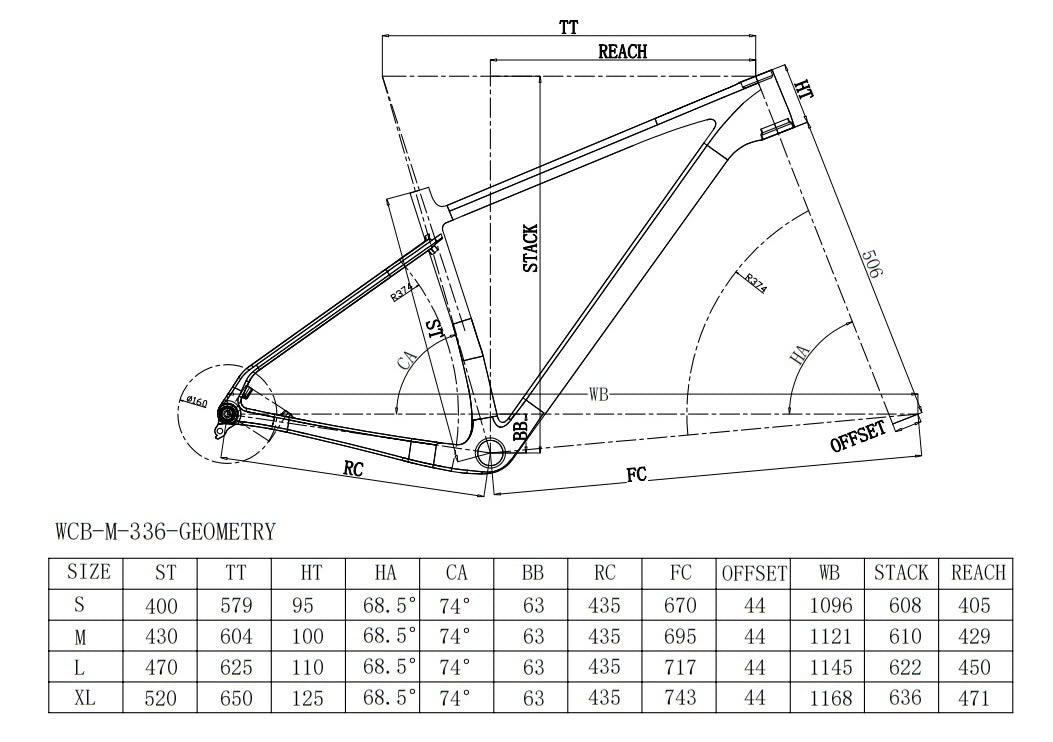

GEOMETRY DIAGRAM
Key frame measurements that
